Description
|

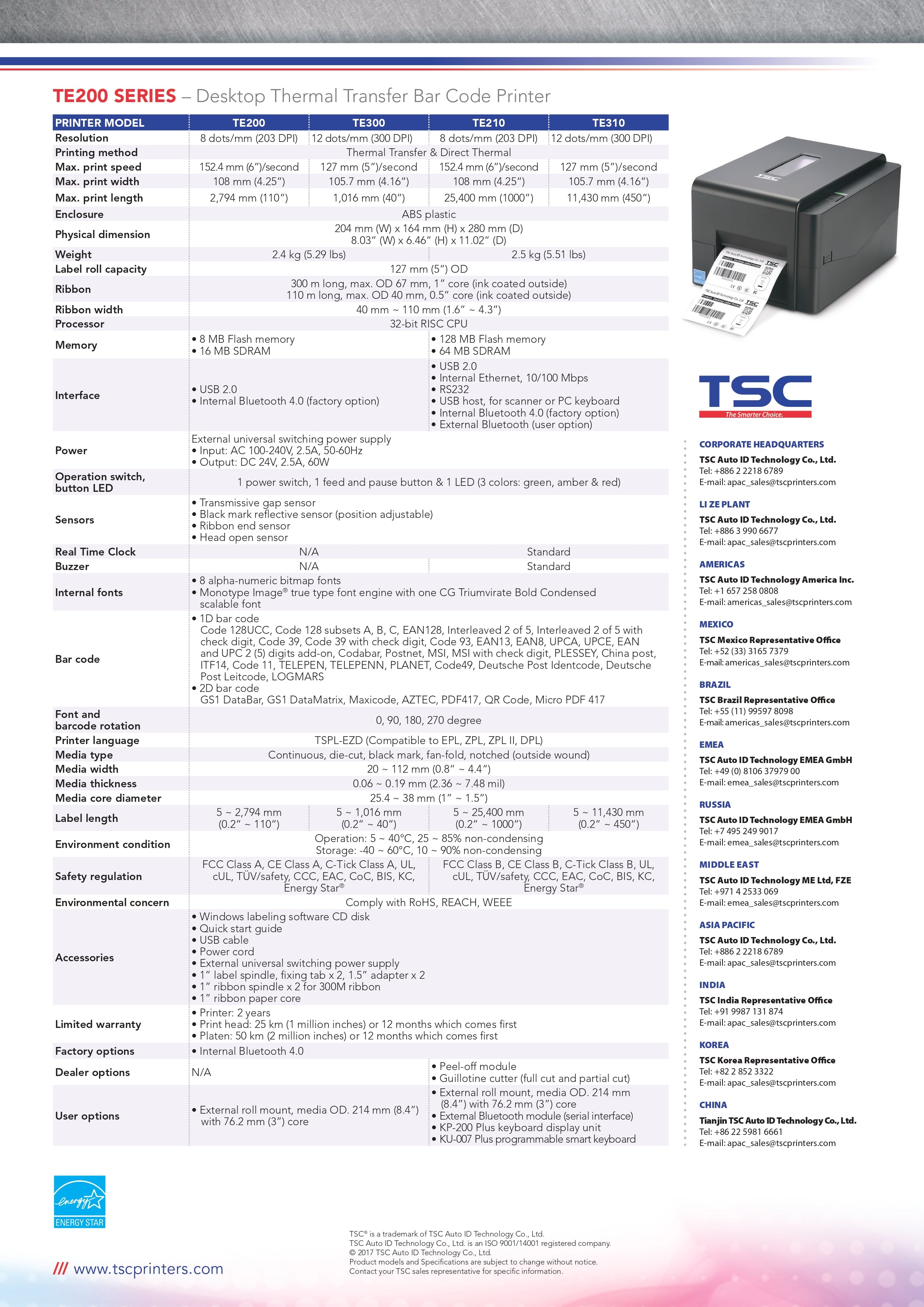

Hardware Specifications |
|
|
Resolution |
203 dpi (8 dots/mm) |
|
Print Method |
Direct thermal/Thermal transfer |
|
Display |
LED with buttons |
|
Hardwire Connectivity |
Ethernet |
|
Serial RS-232 |
|
|
USB |
|
|
USB Host |
|
|
Wireless Connectivity |
Bluetooth |
|
Wi-Fi |
|
|
Enterprise Printer Management |
TSC Console |
|
Type |
Desktop |
|
Max. Print Speed |
Up to 6 ips (152 mm/s) |
|
Max. Print Width |
4.25" (108 mm) |
|
Max. Print Length |
1,000" (24,400 mm) |
|
RAM |
64 MB SDRAM |
|
Flash |
128 MB |
|
Optional Cutter |
Guillotine cutter (full cut and partial cut) |
|
Media Specifications |
|
|
Internal Label Capacity |
5" (127 mm) OD |
|
Max. Media Width |
0.8" - 4.4" (20 - 112 mm) |
|
Media Type |
Continuous; Die-Cut; Black Mark; Fan-Fold; Notched (Outside Wound) |
|
Max. Ribbon Length |
300 Meters |
|
Ribbon Width |
1.6" - 4.3" (40 - 110 mm) |
|
Media Core Diameter |
1.0" - 1.5" (25.4 - 38.1 mm) |
|
Construction |
ABS plastic |
|
Programming Languages |
TSPL-EZD |

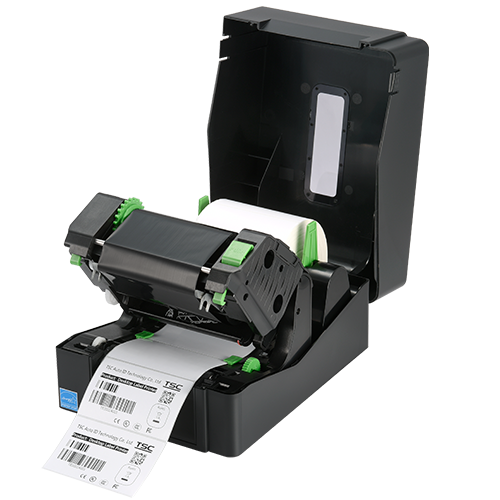

The TSE TE 210 Thermal Transfer Barcode Printer is a high-quality and efficient printing solution designed specifically for barcode applications. With its advanced thermal transfer technology, this printer is capable of producing crisp, clear, and durable barcode labels for various industries.
Featuring a compact and user-friendly design, the TE 210 is easy to set up and operate, making it suitable for both small-scale and large-scale barcode printing tasks. It offers a reliable and precise printing mechanism that ensures accurate barcode reproduction, allowing businesses to maintain optimal inventory management and product tracking.
The TE 210 printer supports a wide range of barcode symbologies, including popular ones like UPC, Code 39, Code 128, EAN-13, and more. This versatility enables it to meet the diverse needs of industries such as retail, logistics, manufacturing, healthcare, and warehousing.
Equipped with an intuitive control panel and a clear LCD display, the TE 210 offers convenient navigation and configuration options, making it easy to adjust print settings and monitor printing progress. It also provides flexible connectivity options, including USB and Ethernet, enabling seamless integration with existing systems and networks.
One of the key features of the TE 210 is its high printing speed, allowing for efficient and time-saving barcode label production. It can print at a maximum speed of X inches per second, ensuring rapid output even for large batches of labels. This speed, combined with its excellent print resolution of Y dpi (dots per inch), ensures that the barcode labels produced are legible and scannable.
Additionally, the TE 210 offers exceptional durability and longevity. It is constructed with high-quality materials and components that can withstand demanding printing environments. This printer can handle continuous printing for extended periods without compromising its performance or print quality.
To ensure uninterrupted operations, the TE 210 supports easy loading of label rolls and ribbon cartridges, minimizing downtime during media replacement. It also incorporates a range of intelligent sensors that detect media and ribbon levels, alerting users when supplies need to be replenished.
In summary, the TSE TE 210 Thermal Transfer Barcode Printer is a reliable, versatile, and efficient printing solution for barcode applications. Its advanced technology, user-friendly interface, fast printing speed, and durable construction make it an ideal choice for businesses seeking accurate and high-quality barcode label printing.
